240V Battery 10Ah 240V LiFePO4 Battery
Features
1) Battey with high capacity, light weight, high consistency, high security.
2) LiFePO4 battery pack 240v with long cycle life > 1500 times.
3) No memory effect, environmental friendly
4) High gravimetric specific energy, high volumetric specific energy, good deep discharge capacity.
5) Cells can be combined in series to increase voltage and parallel to increase capacity.
6) Size of LiFePO4 battery can be customized.
Specificaiton Of 10Ah 240V LiFePO4 Battery
|
Lifepo4 battery pack
|
240V
|
|
Minimal capacity(0.5C)
|
10Ah
|
|
Nominal voltage
|
240V
|
|
Max. charge voltage
|
278V
|
|
Discharge cut-off voltage
|
188V
|
|
Max Charge current
|
(0.5C)5A
|
|
Max Working current
|
(1C)10A
|
|
Standard charge current
|
(0.2C)2A
|
|
Standard discharge current
|
(0.5C)5A
|
|
Pack Impedance standard
|
≤100 mW
|
|
Weight (Approx.)
|
≈60Kg
|
|

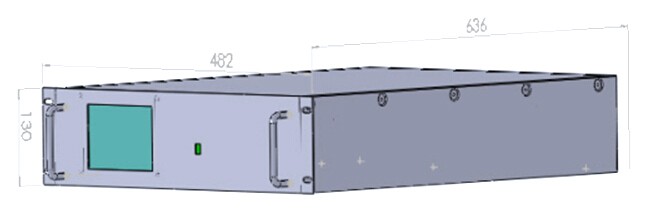

Max. dimension(L×W×H)(mm)
|
≤636*482*133
|
|
Operating temperature
|
Charge temperature
|
0℃~45℃
|
|
Discharge temperature
|
-20℃~55℃
|
|
BMS
|
|
Single cell over-charge cut-off voltage
|
3.7V
|
|
over-charge release voltage
|
3.35V
|
|
Single cell under-discharge cut-off voltage
|
2.5V
|
|
Discharge release voltage
|
2.7V
|
|
Over-discharge cut-off current
|
20A
|
|
Over-discharge cut-off current delay
|
1S±0.5S
|
|
Short-circuit protection
|
50A
|
|
Short-circuit protection delay
|
≤1mS
|
|
Condition for the recovery of over-current and Short-circuit
|
Charge release
|
|
Balance current
|
50mA
|
|
Balance Condition
|
≥3.5V,Differential pressure 50mV
|
|
Communication procotol
|
RS485 or RS232
|
|
|
