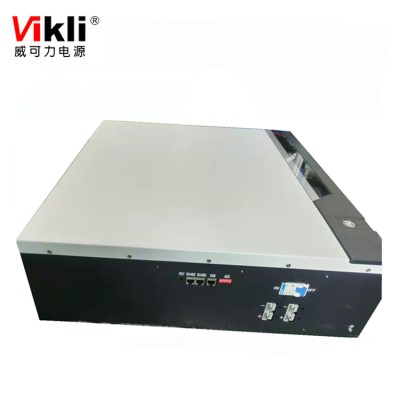

10kwh LiFePO4 battery power wall
Product data sheet
|
Electric spec |
|
|
Nominal voltage |
51.2V |
|
Typical capacity |
200Ah |
|
Energy |
10.24KWH |
|
Max. charge voltage |
58.4 V |
|
Discharge cut-off voltage |
40V-40.3V |
|
Standard charge current |
0.2C |
|
Max charge current |
0.5C |
|
Standard discharge current |
0.5C |
|
Max discharge current |
0.5C |
|
Cycle life |
3500times |
|
Weight&Dimension |
|
|
Weight (Approx.) |
≈85Kg |
|
Max. dimension（L×W×H） |
620*693*180mm |
|
Environment |
|
|
Charge temperature |
0℃～45℃ |
|
Discharge temperature |
-20℃～55℃ |
|
Inverter+Mppt |
|
|
3kw inverter+mppt |
Optional |
|
5kw inverter+mppt |
Optional |
