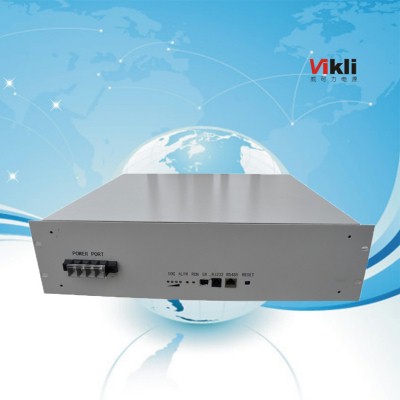

48V50AH Lithium Iron Phosphate Battery For Uninterrupted Power Supply
Features
1) High capacity, light weight, high consistency, high security.
2) Long cycle life(over 2000 times).
3) Wide operating temperature range.
4) No memory effect, environmental friendly
5) High gravimetric specific energy, high volumetric specific energy, good deep discharge capacity.
6)Battery can be customized.
LiFePO4 Battery Specificaiton
|
Battery Model |
48V50Ah |
|
|
Minimal capacity(0.5C) |
50Ah |
|
|
Nominal voltage |
51.2V |
|
|
Max. charge voltage |
58.2V |
|
|
Discharge cut-off voltage |
40V |
|
|
Max Charge current |
(0.5C)25A |
|
|
Max Working current |
(1C)50A |
|
|
Standard charge current |
(0.2C)10A |
|
|
Standard charge current |
(0.5C)25A |
|
|
Pack Impedance standard |
≤100 mW |
|
|
Weight (Approx.) |
≈32Kg |
|
|
Max. dimension(L×W×H)(mm) |
≤420*482*133 |
|
|
Operating temperature |
Charge temperature |
0℃~45℃ |
|
Discharge temperature |
-20℃~55℃ |
|
Lithium Battery Pack Productive Process
Photo of BMS
LiFePO4 Battery Performance Curves
Type of Back-up Power Battery Pack
