48V LFP battery for 100Ah tuk tuk car battery power
48V LFP battery for 100Ah tuk tuk car battery power :
Description of LFP battery:
This 48V100Ah LiFePO4 battery pack is according to the client’s requirements for “Tuk Tuk car”
- The battery pack is composed of 16 pieces of 100AH monomer cells
- The module cabinet is fixed with partition. And the inner of the box is reserved for the space of 3mm which is installed the 4mm EVA cotton for buffering
- Management system is supplied by its own LiFePO4 battery pack “DC-DC”,charging and discharging USB are used the same one.And a waterproof connector lead to the power supply.
- Charge is controlled by “Enable”. The operating specification of battery back can be display by the CD when installing
Parameter of Electric bus battery :
|
Item |
Specification |
Remark |
|
Model and Specification |
EV-P-001100-PX03 |
|
|
AC Inner Resistance |
<0.5mΩ |
50%SOC |
|
Standard Voltage |
LiFePO4 3.2V |
|
|
Weight |
Approx. 2.9Kg |
|
|
Charge Cut-off Voltage |
LiFePO4 3.65V |
|
|
Charge Cut-off Current |
0.01C |
|
|
Discharge Cut-off Voltage |
2.0V |
|
|
Standard Charge |
Constant current at 0.2 C with voltage of 3.6 V and cutoff current at 0.01C |
|
|
Operating Temperature |
Charge 0~45℃/Discharge-20~55℃ |
|
|
Storage time of LFP battery |
-10 ~ 45oC less than 3 months /55oC one month/ -10 ~ 25oC less than 1 year |
|
|
Storage Temperature |
-10 ~ 45oC |
|
|
Life Cycle of LFP battery |
≥3000 times (Discharge Capacity ≥Standard Capacity*80%) |
25℃ 0.2C/0.2C |
(2).Specification Of Battery Pack:
|
Battery Pack Type |
LFP battery pack |
||
|
Battery Pack Model |
48V100AH |
||
|
Voltage Range |
44.8V~58.4V |
||
|
General Energy(KWh )23±2℃,1/3C |
4.8KWh |
||
|
Battery Pack Capacity(Ah)23±2℃,1/3C |
100Ah |
||
|
Monomer cell |
EV GLP25Ah-94172226 |
||
|
Composed Type |
4P16S |
||
|
Charge Input Type |
Same Connector |
Plug model and specification |
|
|
Discharge Output Type |
Plug model and specification |
||
|
Working Environment Temperature Range(℃) |
Charge: 0℃~45℃ |
||
|
Discharge: -20℃~55℃ |
|||
|
Environment Relative Humidity |
20%~90% |
||
|
Storage Tempreture |
25℃~40℃ |
||
|
Life Cycle of Battery Pack(DOD100%) Initial Capacity 80% |
1800 times |
||
|
Continuous Charge Current |
0.2C |
||
|
Max. Charge Current |
0.5C |
||
|
Max. Discharge Current(≤30S) |
2C |
||
|
Continuous Discharge Current |
1C |
||
|
Capacity Retention(28 days,25℃,SOC≥85% in normal temperature) |
√ |
||
|
Insulation Resistance RO Test Value(Ω) |
/ |
||
|
Water Dust Ingress Protection |
IP65 |
||
|
Weight(kg) |
≤100KG |
||
|
Cooling Type |
/ |
||
|
Heating Type |
/ |
||
|

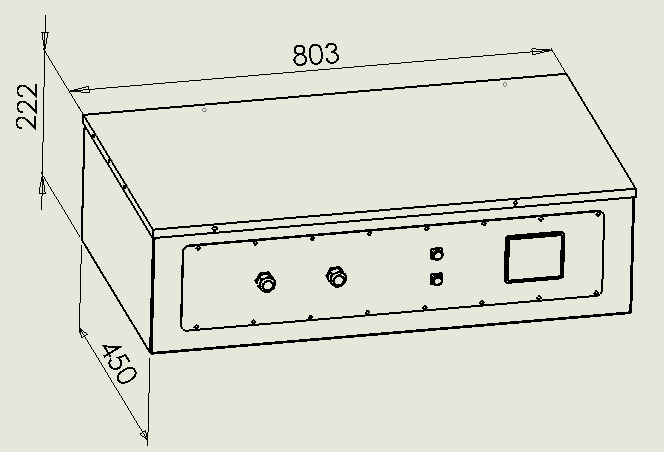

Size of Battery Box(mm) |
L*W*H= 803*450*222 mm |
||
Fetures of LFP battery:
1. High temperature resistance
2. High working voltage for single battery cells
3. Pollution-free
4. Long cycle life(≥1800 times)
5. No memory effect
7. With short-circuit production function, safe and reliable
8. Factory price& High quality
9. No self discharge
10. Light weight, small size
Life Cycle Curves:

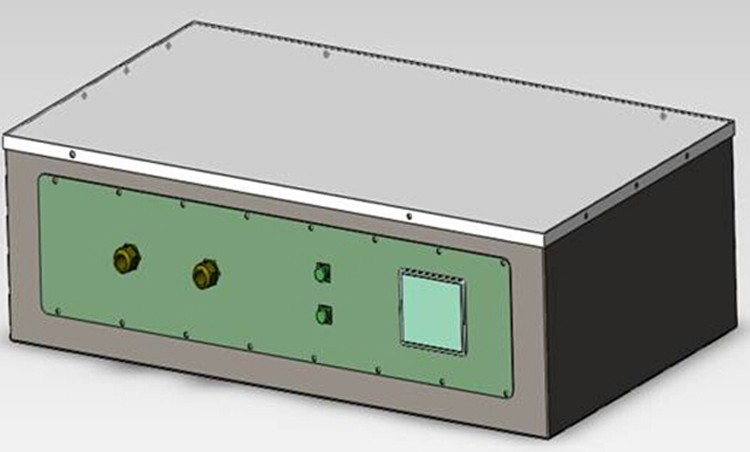

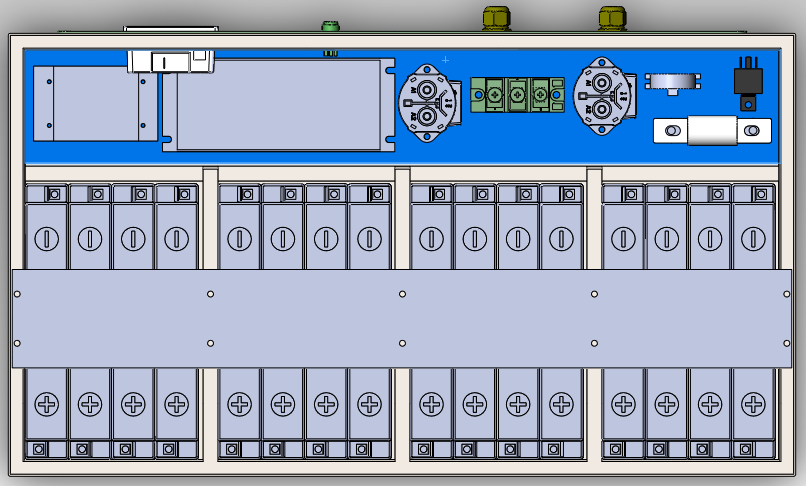

Battery Structure Picture:
